3KC8452-0GA22-0GA3 AUTOMAATNE MOOTORAJAMIGA ÜMBERLÜLITI 4P Iu: 1250A KÄEPIDE POLTÜHENDUS

3KC8452-0GA22-0GA3 AUTOMAATNE MOOTORAJAMIGA ÜMBERLÜLITI 4P Iu: 1250A KÄEPIDE POLTÜHENDUS

Bränd
SIEMENS
Tootekood
36056900243
EAN
4001869532929
Tootja ID
3KC8452-0GA22-0GA3

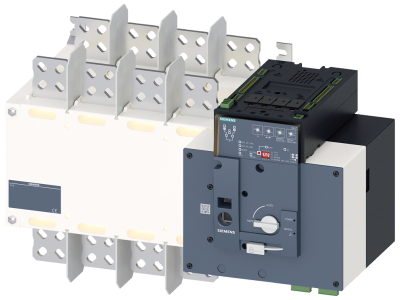

Pilt on illustratiivne

Toote informatsioon

Toote informatsioon

SENTRON, ATE, transfer switching equipment 3KC, automatically, ATSE, 4- pole, Iu: 1250 A, Ue AC: 415 V, Ie at AC-33 B at 415 V: 1000 A, Ie at AC-23 A at 690 V: 800 A, screw mounting, motorized operating mechanism, at the right end, long handle, busbar connection 3KC transfer switching equipment up to 3200 A for permanent power supply. 3KC transfer switching equipment 3KC from SIEMENS stands for high performance, easy installation and reliable operation. In the portfolio, you will find manually operated MTSE, remotely operated RTSE and automatic ATSE transfer switching equipment in a variety of designs for a wide range of switching tasks. 3KC transfer switching equipment is used in power supply networks to transfer loads between a normal and an alternative source. Switching between two loads is also possible. 1. Short switching times for ASTE and RTSE (up to 160 A < 180 ms). 2. Can be used flexibly thanks to a compact design and wide range of accessories. 3. Improved safety during maintenance works thanks to padlock locking. 4. Quick installation on the standard mounting rail with frame sizes up to 160 A. 5. Efficient engineering with extensive CAx data. 6. Simple documentation with the manual configurator. 7. Ideal for a continuous power supply (UPS) e.g. in computer rooms, production lines in continuous operation or large infrastructure such as airports (RTSE and ATSE variants). www.siemens.com/switching-devices. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
Lahklüliti
  • Maksimaalne nimitööpinge Ue AC 415 V
  • Tunnustalitluspinge 166.0 - 332.0 V
  • Nominaalne püsivool Iu 1250 A
  • Tunnus-pidevvool talitlusel AC-21. 400 V 1250 A
  • Nominaalne lühiajaline lühisvool LCW 35 kA
  • Pooluste arv 4
  • Ümberlülituskontaktidest abikontaktide hulk 4
  • Seadme ehitus Sisseehitatud seadme fikseeritud sisseehitamise tehnika
  • Juhtelemendi värvus Must
  • Juhtelemendi liik Pikk pöörlev käepide
  • Peavooluahela ühenduse tüüp Lati ühendus
  • Kaitseaste (IP). esikülg IP00
  • Kaitseaste (NEMA) Muul viisil
