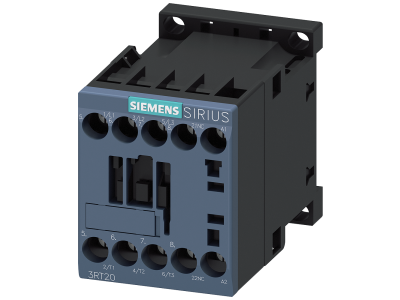

3RT2017-1AP02 KONTAKTOR S00 5.5KW 230V AC MÄHIS 1NC

3RT2017-1AP02 KONTAKTOR S00 5.5KW 230V AC MÄHIS 1NC

Bränd
SIEMENS
Tootekood
370569195
EAN
4011209784994
Tootja ID
3RT2017-1AP02
Pilt on illustratiivne

Toote informatsioon

Toote informatsioon

Power contactor, AC-3 12 A, 5.5 kW / 400 V 1 NC, 230 V AC, 50 / 60 Hz 3-pole, Size S00 screw terminal Power contactor SIRIUS 3RT2 for switching motors. The 3RT2 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. The contactors offer the best connection to the automation level for every application (parallel, via ASi or IO-Link): Integrated auxiliary switches reduce the complexity of your design. The front-panel terminals simplify the wiring. The 3RT2 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready. They are available in various sizes and in a wide performance range with AC and DC operation. In addition to screw terminals, all the devices are also available with spring-type terminals for fast, maintenance-free and vibration-proof connection. The comprehensive range of accessories, such as auxiliary switches, auxiliary releases etc. is standardized for all sizes. The available link modules, function modules and the SIRIUS 3RV29 infeed system considerably reduce the wiring expense. The 3RT2 power contactors replace the well-proven 3RT1 series (up to 55 kW). Simple, efficient and always up to date - SIRIUS modular system.
Magnetkontaktor, vahelduvvoolulüliti
  • Juhtahela tunnus-toitepinge Us vahelduvvoolul AC 50HZ 230 - 230 V
  • Juhtahela tunnus-toitepinge Us vahelduvvoolul AC 60HZ 230 - 230 V
  • Aktiveerimisvoolu liik AC
  • Nimikäitusvool AC-1. 400 V juures 22 A
  • Nimikäitusvool AC-3. 400 V juures 12 A
  • Nimi käitusvõimsus AC-3. 400 V juures 5.5 kW
  • Nimitöövool AC-4. 400 V korral 8.5 A
  • Tunnustalitlusvõimsus (NEMA) 5.516240625 kW
  • Tavaoludes suletud olekus olevate Aux-kontaktide hulk 1
  • Peavooluahela ühenduse tüüp Kruviühendus
  • Tavaoludes avatud olekus olevate peakontaktide hulk 3
