3RU2116-1DB0 S00 TERMORELEE 1.1KW 2.2-3.2A

3RU2116-1DB0 S00 TERMORELEE 1.1KW 2.2-3.2A

Tootekood
370569314
EAN
4011209781627
Tootja ID
3RU2116-1DB0

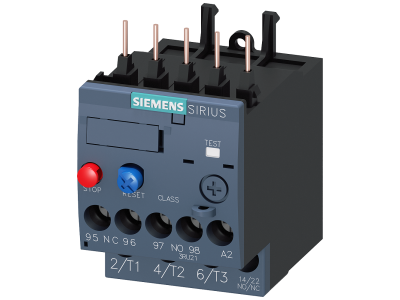

Pilt on illustratiivne

Toote informatsioon

Overload relay 2.2...3.2 A Thermal For motor protection Size S00, Class 10 Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset thermal overload relay SIRIUS 3RU2 for inverse-time delayed protection of loads with normal starting against excessive temperature rises due to overload or phase failure. This series is particularly flexible and cost-effective. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX or IEC Ex) are a matter of course. Can be supplied with different setting ranges of the overload release. They are available with screw or spring-type terminals for fast, maintenance-free and vibration-proof connection, as well as for stand-alone installation. The accessories consistently fit all sizes from S00 to S3. Simple, efficient and always up to date - SIRIUS modular system.
Temperatuuri kontrollrelee
  • Reguleeritav vooluvahemik 2.2 - 3.2 A
  • Maksimaalne nimitööpinge Ue 690 V
  • Paigaldusviis Vahetu kinnitamine
  • Peavooluahela ühenduse tüüp Kruviühendus
  • Tavaoludes suletud olekus olevate Aux-kontaktide hulk 1
  • Tavaoludes avatud olekus olevate Aux-kontaktide hulk 1
  • Vabastusklass CLASS 10
