3UG4511-1BP20 FAASIDE JÄRJESTUSE MONITOORINGU RELEE 2CO KONTAKTI AUTO-RESET AC 320-500V

3UG4511-1BP20 FAASIDE JÄRJESTUSE MONITOORINGU RELEE 2CO KONTAKTI AUTO-RESET AC 320-500V

Tootekood
270569140
EAN
4011209642225
Tootja ID
3UG4511-1BP20

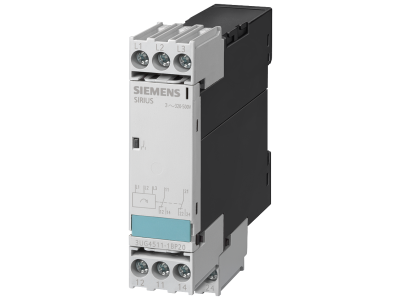

Pilt on illustratiivne

Toote informatsioon

Analog monitoring relay Phase sequence monitoring 3 x 320...500 V 50...60 Hz AC 2 change-over contacts screw terminal Successor product for 3UG3511-1BQ50 Network monitoring relay with analog setting SIRIUS 3UG4 for monitoring phase sequence, phase failure and phase asymmetry and/or undervoltage, e.g. with mobile systems such as A/C compressors, refrigerated containers, construction site compressors or cranes. Worldwide use thanks to international certificates. Different versions enable application-related selection of products. Less space required in the control cabinet thanks to slim design. All versions with removable terminals. In addition to screw terminals, all the devices are also available with spring-type terminals for fast, maintenance-free and vibration-proof connection. Versions with a wide voltage range and without auxiliary voltage can be used in any networks worldwide. The comprehensive range of accessories, such as unit labeling plates, push-in lugs and cover caps, is standardized for all relays. SIRIUS relays - one range for every application.
Faasituvastusrelee
  • Elektrilise ühenduse liik Kruviühendus
  • Juhtahela tunnus-toitepinge Us vahelduvvoolul AC 50HZ 320.0 - 500.0 V
  • Juhtahela tunnus-toitepinge Us vahelduvvoolul AC 60HZ 320.0 - 500.0 V
  • Aktiveerimisvoolu liik AC
  • Pinge mõõteulatus 320 - 500 V
  • Ümberlülitavate kontaktide arv 2
  • Laius 22.5 mm
  • Kõrgus 92 mm
  • Sügavus 91 mm
