3UG4512-1BR20 FAASIDE JÄRJESTUSE- FAASI VEA- JA ASÜMMEETRIA MONITOORINGU RELEE 2CO KONTAKTI AC 160-6

3UG4512-1BR20 FAASIDE JÄRJESTUSE- FAASI VEA- JA ASÜMMEETRIA MONITOORINGU RELEE 2CO KONTAKTI AC 160-6

Tootekood
270569143
EAN
4011209642256
Tootja ID
3UG4512-1BR20

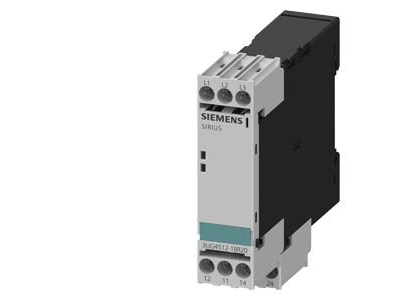

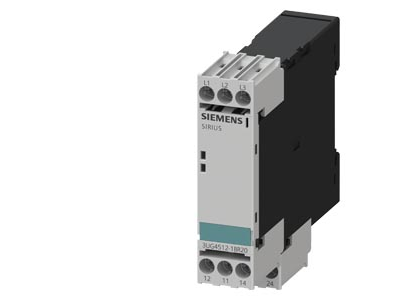

Pilt on illustratiivne

Toote informatsioon

Analog monitoring relay Phase failure and sequence 3 x 160...690 V 50...60 Hz AC 2 change-over contacts screw terminal Successor product for 3UG3513-1BL50 or 3UG3513-1PB50 Network monitoring relay with analog setting SIRIUS 3UG4 for monitoring phase sequence, phase failure and phase asymmetry and/or undervoltage, e.g. with mobile systems such as A/C compressors, refrigerated containers, construction site compressors or cranes. Worldwide use thanks to international certificates. Different versions enable application-related selection of products. Less space required in the control cabinet thanks to slim design. All versions with removable terminals. In addition to screw terminals, all the devices are also available with spring-type terminals for fast, maintenance-free and vibration-proof connection. Versions with a wide voltage range and without auxiliary voltage can be used in any networks worldwide. The comprehensive range of accessories, such as unit labeling plates, push-in lugs and cover caps, is standardized for all relays. SIRIUS relays - one range for every application.
Faasituvastusrelee
  • Elektrilise ühenduse liik Kruviühendus
  • Juhtahela tunnus-toitepinge Us vahelduvvoolul AC 50HZ 160.0 - 690.0 V
  • Juhtahela tunnus-toitepinge Us vahelduvvoolul AC 60HZ 160.0 - 690.0 V
  • Aktiveerimisvoolu liik AC
  • Pinge mõõteulatus 160 - 690 V
  • Ümberlülitavate kontaktide arv 2
  • Laius 22.5 mm
  • Kõrgus 92 mm
  • Sügavus 91 mm
