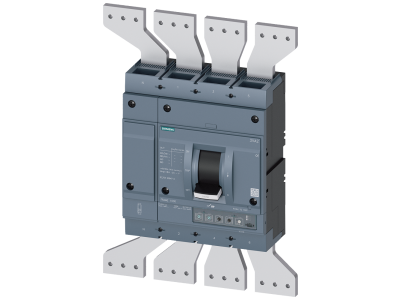

3VA2612-6HM42-0AA0 3VA2 1250 KOMPAKTKAITSELÜLITI Icu=85kA @415V 4P ETU330 LIG In=1250A Ir=500A...1250A Ii=1.5...10xIn N(OFF KUNI 100%) Ig=0.2... 1xIn tg=0.1/0.3s POLTÜHENDUS

3VA2612-6HM42-0AA0 3VA2 1250 KOMPAKTKAITSELÜLITI Icu=85kA @415V 4P ETU330 LIG In=1250A Ir=500A...1250A Ii=1.5...10xIn N(OFF KUNI 100%) Ig=0.2... 1xIn tg=0.1/0.3s POLTÜHENDUS

Bränd
SIEMENS
Tootekood
37056903982
EAN
4042949435624
Tootja ID
3VA2612-6HM42-0AA0
Pilt on illustratiivne

Toote informatsioon

Toote informatsioon

circuit breaker 3VA2 IEC frame 1250 breaking capacity class H Icu=85kA @ 415 V 4-pole, line protection ETU330, LIG, In=1250A overload protection Ir=500A ...1250A short circuit protection Ii=1,5...10 x In N conductor protection adjustable (OFF, up to 100%) ground-fault protection Ig=0,2... 1 x In, tg=0,1/0,3s nut keeper kit 3VA2 molded-case circuit breaker with 8-series ETU for system protection. As an important element of SENTRON protective components for industrial and infrastructure applications, the 3VA molded-case circuit breakers from Siemens provide effective plant, starter and motor protection thanks to reliable shutdown in the event of an overload or short circuit. The 3VA molded-case circuit breakers set new standards in flexibility and the variety of modular accessories available. Standardized accessories for several sizes across all series of the 3VA1 and 3VA2 molded-case circuit breakers. Key features of this version of the 3VA molded-case circuit breaker: 1. Compact design. 2. Available as version for plant protection and generator protection. 3. Available as 3-pole and 4-pole version. 4. Four breaking capacity classes from 55 kA to 150 kA at 415 V. 5. Depending on the size: Rated current 25 A. 630 A. 6. Can be installed fixed, in plug-in design or as withdrawable version. 7. The series has a solid-state overcurrent trip unit. 8. Integrated display for measured values. 9. Integrated measuring function and optional communication connection via Modbus TCP, Modbus RTU, PROFINET and PROFIBUS. 10. Modular and easy-to-fit internal accessories with wide range of functions. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
Trafo, generaatori või paigaldise toiteahela kaitselüliti
  • Nominaalne püsivool Iu 1250 A
  • Nimi lahutusvõime lühisel Icu 400 V. 50 Hz korral 85 kA
  • Viivituseta lühiskatkestuse reguleerimisvahemik 1875 - 12500 A
  • Peavooluahela ühenduse tüüp Muul viisil
  • Seadme ehitus Sisseehitatud seadme fikseeritud sisseehitamise tehnika
  • Pooluste arv 4
  • Pea vooluahela ühenduse positsioone Esikülg
  • Juhtelemendi liik Lüliti hoob
  • Kaitseaste (IP) IP40
