5SU1356-6KK16 RIKKEVOOLUKAITSE+KAITSELÜLITI 30MA A 1P+N B16A 6KA

5SU1356-6KK16 RIKKEVOOLUKAITSE+KAITSELÜLITI 30MA A 1P+N B16A 6KA

Bränd
SIEMENS
Tootekood
320569275
EAN
4001869306728
Tootja ID
5SU1356-6KK16

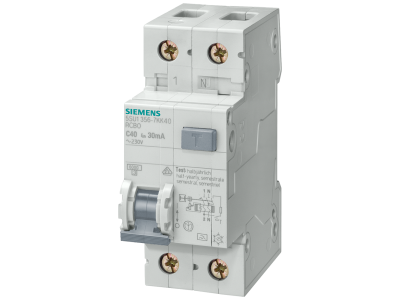

Pilt on illustratiivne

Toote informatsioon

Toote informatsioon

RCBO, 6 kA, 1P+N, type A, 30 mA, B char., In: 16 A, Un AC: 230 V RCBOs for combined short-circuit protection and anti-contact protection. An important element of the SENTRON protective devices for electrical installations, the patented RCBOs from Siemens allow combined personnel, fire and cable protection in just one device. In addition to detecting the fault currents, they also provide reliable protection against short-circuits and overloads thanks to the integrated overcurrent protective device. As a combination of residual current and miniature circuit breaker, the Siemens RCBOs are primarily characterized by: https://www.siemens.com/global/en/home/products/energy/low-voltage/components/sentron-protection-devices/residual-current-protective-devices.html. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
Maaühendus-lekkevoolu kaitselüliti
  • Pooluste arv (kokku) 2
  • Kaitstud pooluseid 1
  • Tunnuspinge 230 V
  • Isolatsiooni nimipinge Ui 264 V
  • Tunnus-impulsstaluvuspinge Uimp 4 kV
  • Tunnusvool 16 A
  • Tunnus-rikkevool 0.03 A
  • Lekkevoolu tüüp A
  • Voolu piiramise klass 3
  • Lühise tunnuslahutusvõimsus standardi EN 61009 järgi 6 kA
  • Nimi lahutusvõime lühisel IEC 60947-2 15 kA
  • Lühisvoolu tunnuslahutusvõime Icn EN 61009-1 järgi 6 kA
  • Löökvoolu võimsus 1 kA
  • Pinge liik AC
  • Sagedus 50 Hz
  • Väljundandmed B
  • Ülepinge kategooria 3
  • Saastemäär 2
  • Ümbrustemperatuur talitluse ajal -25 - 55 °C
  • Laius moodulvahemike arvuna 2
  • Sügavus 70 mm
  • Kaitseaste (IP) IP20
