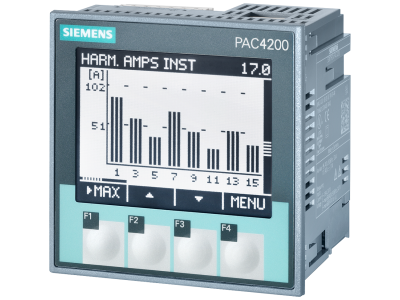

7KM4211-1BA00-3AA0 VÕRGUANALÜSAATOR ARVESTI PAC4200 LCD UKSELE L-L: 500 V L-N: 289 V 5 A Modbus TCP US=22 … 65 VDC

SENTRON, measuring device, 7KM PAC4200, LCD, L-L: 500 V, L-N: 289 V, 5 A, 3-phase, Modbus TCP, optional Modbus RTU / PROFINET / PROFIBUS / DI/DO, apparent/active/reactive energy / cos phi, harmonics: 2.-64., THD, class 0.2 acc. to IEC61557-12 or cl. 0.2S acc. to IEC62053-22, ext-low volt. pwr sup. unit DC, screw terminals The 7KM PAC measuring devices are the ideal basis for recording energy values. The 7KM PAC measuring devices enable precise, reproducible and reliable measurement of energy values for infeed, outgoing feeders or individual loads. They not only provide comprehensive information about your electrical installations and power distribution, but also key measured values for assessing the system state and quality of the power supply. For further processing of the measured data, the devices are equipped with a wide range of communication options for easy integration in higher-level automation and energy management systems. The 7KM PAC4200 measuring device records around 200 measured values, including basic data for evaluating the grid quality. Key features of the Siemens 7KM PAC4200 measuring devices: 1. Large functional and service scope, for example measurement in 50 and 60 Hz networks, use in plants with UL/CSA requirements, IP65 with standard seal. 2. Multiple energy meters (10) for active energy, reactive energy and apparent energy, high and low tariffs, import and export. 3. Integration into any power management system or automation system via Ethernet, PROFINET, PROFIBUS DP or Modbus RTU. 4. Integration of lower-level devices via integrated gateway function. 5. Efficient planning with comprehensive CAx data (ePLAN, 3D data). 6. Recording of more than 4000 user-defined operating, control and system events. 7. Time-based recording in load profile memory and event memory.
