LZS:RT4A4L24 KOMPLEKTNE RT RELEE 2CO 8A 24VDC +ALUS 15.5MM +LED +KINNITUSKLAMBER +MÄRKEALUS

LZS:RT4A4L24 KOMPLEKTNE RT RELEE 2CO 8A 24VDC +ALUS 15.5MM +LED +KINNITUSKLAMBER +MÄRKEALUS

Tootekood
270569190
EAN
4011209674561
Tootja ID
LZS:RT4A4L24
Pilt on illustratiivne

Toote informatsioon

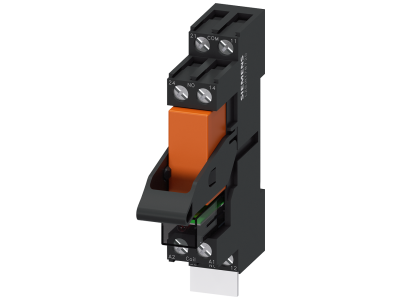

Plug-in relay complete unit 2 W, 24 V DC LED module red Standard plug-in socket screw terminal Coupling relay with plug-in relay SIRIUS LZS for galvanic isolation, contact multiplication, and switching small loads and as a means of switching potential. The coupling relays feature wiring without tools and vibration-proof connection thanks to push-in spring-loaded terminals. Bases with logical separation enable easy wiring. The switching capacity has been tested according to A-15 and DC-13. Thanks to hard gold plated contacts, optimal interaction with electronic controls is ensured. Devices are available as complete units or as single modules in the designs RT, PT and MT, with or without logical separation, in various coil voltages as well as with screw-type or push-in terminals. Extensive accessories are available such as plug-in base, holding/ejection bracket, wiring bracket and LED modules. SIRIUS relays - one range for every application.
Lülitusrelee
  • Elektrilise ühenduse liik Kruviühendus
  • Aktiveerimisvoolu liik DC
  • Ajam. polarisatsioon Polariseeritud
  • Ajam. lülituse suhtestamine Mono stabiilne
  • Ümberlülitavate kontaktide arv 2
  • Lüliti kontakti tüüp Lihtkontakt
  • Kaitseaste (IP) IP20
  • Laius 15.5 mm
  • Kõrgus 71 mm
  • Sügavus 78 mm
